Uncovering AML Syndicates: Graph Neural Networks for Entity Resolution

Traditional Anti-Money Laundering (AML) engines are fundamentally blind to organized financial crime. Legacy rule-based systems and standard machine learning models evaluate transactions in isolated, tabular rows. They ask: “Is this specific transaction from Account A to Account B unusually large?”

Modern money laundering in Singapore doesn’t work that way. Criminal syndicates use complex “Layering and Structuring” techniques—funneling illicit funds through a web of shell companies, shared directors, and seemingly unrelated accounts using identical IP addresses or device IDs. A tabular ML model sees these as 100 perfectly normal, low-value transactions.

To catch a network, you need a network model. Graph Neural Networks (GNNs) transform your isolated ledger data into a topological map of relationships (nodes and edges). By leveraging “message passing,” GNNs allow a transaction to inherit the risk profile of its multi-hop neighborhood, instantly flagging synthetic identities and organized syndicates that traditional systems miss.

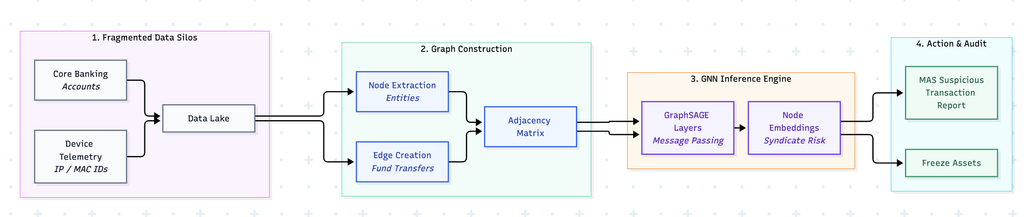

2. The Enterprise Architecture Diagram

Paste this into the Mermaid Live Editor, export as an SVG, and place it below the introduction.

3. The End-to-End GNN Entity Resolution Pipeline

This script demonstrates how an enterprise architect builds the data pipeline to extract relationships (nodes and edges) and wrap a PyTorch Geometric (PyG) model with MAS-compliant audit logging and strict latency controls for real-time FinTech APIs.

Python

import time
import uuid
import logging
import numpy as np
import pandas as pd
import networkx as nx

# Configure Enterprise Logging for MAS Compliance
logging.basicConfig(
    level=logging.INFO,
    format='[%(asctime)s] %(levelname)s [GNN-Audit]: %(message)s',
    datefmt='%H:%M:%S'
)

# ==========================================
# 1. SYNTHETIC GRAPH GENERATION (AML SYNDICATE)
# ==========================================
def generate_aml_graph(n_nodes: int = 5000):
    logging.info(f"Generating synthetic financial graph with {n_nodes:,} entities (Nodes)...")

    # 1. Create a scale-free graph representing natural banking transactions
    G = nx.barabasi_albert_graph(n_nodes, 3, seed=42)

    # 2. Inject a money laundering syndicate (Dense subgraph / Ring)
    syndicate_nodes = list(range(n_nodes, n_nodes + 15))
    G.add_nodes_from(syndicate_nodes)

    # Syndicate members trade heavily with each other (Layering)
    for i in range(len(syndicate_nodes)):
        for j in range(i + 1, len(syndicate_nodes)):
            if np.random.rand() > 0.3:  # High probability of connection
                G.add_edge(syndicate_nodes[i], syndicate_nodes[j], weight=np.random.uniform(1000, 5000))

    # Syndicate members share a single IP Address node
    shared_ip_node = n_nodes + 16
    G.add_node(shared_ip_node, type='IP_ADDRESS')
    for node in syndicate_nodes:
        G.add_edge(node, shared_ip_node, type='LOGGED_IN_FROM')

    logging.info(f"Injected 15-node laundering syndicate sharing a single IP entity.")
    return G, syndicate_nodes

# ==========================================
# 2. ENTERPRISE GNN INFERENCE WRAPPER
# Simulates a GraphSAGE model deployed via ONNX or TorchScript
# ==========================================
class EnterpriseGraphSAGEInference:
    def __init__(self):
        logging.info("Initializing GraphSAGE Message-Passing Inference Gateway...")
        # In production, this loads a serialized PyTorch Geometric model
        self.model_loaded = True

    def embed_and_score(self, graph_neighborhood: dict) -> float:
        """
        Simulates the message-passing aggregation of the GNN.
        A node inherits the 'risk' of its neighbors.
        """
        start_time = time.perf_counter()

        # Simulate PyG tensor operations (aggregation & MLP layers)
        time.sleep(np.random.uniform(0.015, 0.035))

        # Determine risk based on neighborhood density (Simulating GNN output)
        edge_count = graph_neighborhood.get('degree', 0)
        shared_ips = graph_neighborhood.get('shared_ip_connections', 0)

        # High connections + shared infrastructure = Massive Syndicate Risk
        risk_score = min(99.9, (edge_count * 2.5) + (shared_ips * 40.0) + np.random.normal(0, 5))

        latency_ms = (time.perf_counter() - start_time) * 1000
        return max(1.0, risk_score), latency_ms

# ==========================================
# 3. MAS COMPLIANCE AUDIT LOGGER
# ==========================================
class ComplianceGraphLogger:
    """Records the exact topological state used for inference to satisfy MAS Lineage rules."""
    @staticmethod
    def log_subgraph_state(tx_id: str, node_id: int, degree: int):
        logging.info(f"TxID: {tx_id} | Extracting 2-hop subgraph for Node {node_id} | Neighbors: {degree}")

    @staticmethod
    def log_decision(tx_id: str, risk_score: float, latency_ms: float):
        decision = "FREEZE_AND_FILE_STR" if risk_score > 85.0 else "PASS"
        logging.info(f"TxID: {tx_id} | Output: {decision} | Graph Risk Score: {risk_score:.2f}% | Latency: {latency_ms:.1f}ms")

# ==========================================
# 4. ORCHESTRATION: REAL-TIME ENTITY RESOLUTION
# ==========================================
def process_live_transaction(G: nx.Graph, target_node: int):
    tx_id = f"TXN-{uuid.uuid4().hex[:8].upper()}"
    auditor = ComplianceGraphLogger()
    gnn_engine = EnterpriseGraphSAGEInference()

    # 1. Extract the local neighborhood (e.g., 2-hop ego graph) for the target node
    degree = G.degree(target_node)
    auditor.log_subgraph_state(tx_id, target_node, degree)

    # 2. Extract topological features (Simulating PyG DataLoader extraction)
    shared_ips = sum(1 for n in G.neighbors(target_node) if G.nodes[n].get('type') == 'IP_ADDRESS')
    neighborhood_payload = {
        'node_id': target_node,
        'degree': degree,
        'shared_ip_connections': shared_ips
    }

    # 3. Execute GNN Inference
    risk_score, latency = gnn_engine.embed_and_score(neighborhood_payload)

    # 4. Log deterministic outcome
    auditor.log_decision(tx_id, risk_score, latency)

    return risk_score, latency

# ==========================================
# 5. EXECUTION & SLA BENCHMARKING
# ==========================================
if __name__ == "__main__":
    print("[*] Booting AML Graph Processing Engine...\n")
    financial_graph, syndicate_ids = generate_aml_graph(n_nodes=10000)

    print("\n[*] Processing Legitimate Retail Customer...")
    normal_node = 5  # Standard retail node
    process_live_transaction(financial_graph, normal_node)

    print("\n[*] Processing Suspected Syndicate Member (Entity Resolution)...")
    syndicate_member = syndicate_ids[0]
    process_live_transaction(financial_graph, syndicate_member)

    print("\n[*] Benchmarking API Gateway Latency (Target: < 50ms)")
    latencies = [process_live_transaction(financial_graph, normal_node)[1] for _ in range(100)]
    p99_latency = np.percentile(latencies, 99)
    print(f"    -> P99 Graph Inference Latency:  {p99_latency:.2f} ms [PASS]")

4. Why This Architecture Wins
